Old Models, New Frameworks: Reviving GANs with Flax

The purpose of this blog post is to guide you through the implementation of a Generative Adversarial Network (GAN) with Flax.

My journey into this topic began with JAX, a new framework by Google that combines a Numpy-like interface with advanced features like Autograd and XLA compilation. Moreover, it is built on the principles of functional programming, meaning functions are purely dependent on input parameters, free from external state influences.

While you can build neural networks directly with JAX, the ecosystem around it, particularly Flax for architecture construction and Optax for optimization and loss functions, makes the development process more enjoyable.

Our focus here will be on implementing a simple GAN. Don't worry if you're new to GANs: we will go through the theory and the practical aspects, drawing insights from Chapter 26 of Probabilistic Machine Learning: Advanced Topics.

A Bit of Theory on GANs

Generative Adversarial Networks (GANs), introduced in the seminal paper by Ian Goodfellow et al., have revolutionized the field of machine learning and laid the foundations for the modern generative models.

The Need for Two Networks

Imagine you want to generate new data from an unknown distribution $p^*$, from which we only have some examples.

In traditional machine learning tasks, we commonly employ static loss functions to evaluate the performance of neural networks. These loss functions compare the network's prediction with the ground truth and provide a metric for assessing the 'goodness' of the network's outputs. These metrics play a crucial role in the backpropagation process, guiding the network in adjusting its parameters for improved performance.

In the context of generative models, evaluating the quality of generated samples presents a unique challenge. Ideally, to determine if a sample is of high quality, one would require access to the true distribution $p^*$ and compute some distance measure $\mathcal{D}(p^*, q)$ from the true distribution to our generated data, denoted as $q$. However, in practice, having access to $p^*$ is often impractical or impossible.

Rather than relying on a static, predefined loss function, GANs consist of two networks: the generator that produces the samples, and a discriminator, which serves as a dynamic loss function. The generator's goal is to produce data so convincing that the discriminator, trained to distinguish real data from fake, gets fooled. As the generator evolves and improves its output, the discriminator adapts and refines its ability to detect fakes. In particular:

• The Generator $G_\theta$ model takes as input random noise $q(z)$, such as a gaussian $q(z) \sim \mathcal{N}(0,1)$, passes the noise through some layers and produces a density $q_\theta(x)$ on the output space.
• The Discriminator $D_\phi$ is a classifier. Its role is to discern whether a sample is from $p^*$ or a generator product.

Training the Networks

The training process consists of two phases:

1. First Phase: The discriminator $D_\phi$ is trained for $K$ steps in which we sample noise from $q(z)$ and true examples from the dataset. The discriminator is optimized to distinguish real data apart from fake data, therefore we optimize the usual cross-entropy loss:

Second Phase: After the first phase we should have a good discriminator that we can use as a loss to improve the generator. Therefore we sample noise from $q(z)$ and we maximize the chance to fool the discriminator:

This objective suffers from vanishing gradients when the generator is poor. The usual fix is the non-saturating loss:

Implementation

Data Generation

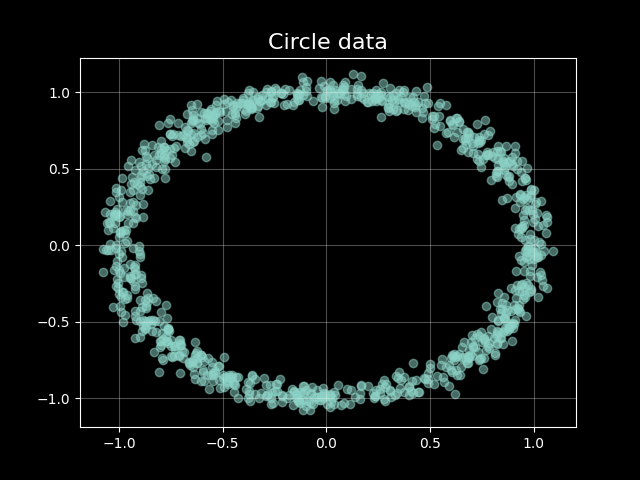

In our example, we will consider a simple distribution as our dataset, where using GANs might seem like overkill but serves as a good example.

In the following code, we can see data generation and dataloader. Notice that we need to handle the random number generation ourselves, as we did for the generator. More on this in the documentation.

from typing import Tuple
import numpy as np
import jax
import jax.numpy as jnp
from jax import random
import tensorflow as tf

def generate_circle_data(
    key: random.PRNGKey, n_samples: int, r: int = 1, noise: float = 0.05
):
    subkey1, subkey2, subkey3 = random.split(key, 3)
    theta = jax.random.uniform(
        key=subkey1, shape=(n_samples,), minval=0, maxval=2 * jnp.pi
    )
    x_noise = jax.random.normal(key=subkey2, shape=(n_samples,)) * noise
    x = r * jnp.cos(theta) + x_noise
    y_noise = jax.random.normal(key=subkey3, shape=(n_samples,)) * noise
    y = r * jnp.sin(theta) + y_noise
    return jnp.stack([x, y], axis=1)

def get_dataloader(dataset: Tuple[np.ndarray, ...], batch_size: int):
    return (
        tf.data.Dataset.from_tensor_slices(dataset)
        .shuffle(2000)
        .batch(batch_size, drop_remainder=True)
        .as_numpy_iterator()
    )

Generator and Discriminator

We'll use Flax's linen module for defining our models. It offers a PyTorch-like class instantiation but the key difference is that we're defining a dataclass, which doesn't hold the network's parameters itself, but only serves as a "storage" of functions to apply.

import jax
import flax.linen as nn

class Generator(nn.Module):
    hidden_channels: int
    batch_size: int

    @nn.compact
    def __call__(self, z_rng):
        # Latent (for which we need a random number generator)
        z = jax.random.normal(z_rng, (self.batch_size, 2))
        z = nn.Dense(self.hidden_channels)(z)
        z = nn.leaky_relu(z)
        z = nn.Dense(self.hidden_channels)(z)
        z = nn.leaky_relu(z)
        # Data in the sample space
        x = nn.Dense(2)(z)
        return x

class Discriminator(nn.Module):
    hidden_channels: int

    @nn.compact
    def __call__(self, x):
        x = nn.Dense(self.hidden_channels)(x)
        x = nn.leaky_relu(x)
        x = nn.Dense(self.hidden_channels)(x)
        x = nn.leaky_relu(x)
        x = nn.Dense(2)(x)
        return x

The @nn.compact decorator allows defining the network directly in the __call__ method. The generator __call__ requires a random number generator as input because JAX handles randomness explicitly.

def generator_model(hidden_channels, batch_size):
    return Generator(hidden_channels=hidden_channels, batch_size=batch_size)

def discriminator_model(hidden_channels):
    return Discriminator(hidden_channels=hidden_channels)

Training Loop

The training loop consists of initializing the models and defining the training steps for both the generator and discriminator. First, we use functools.partial to derive functions with certain arguments pre-filled, then we initialize the parameters with init.

# We use partial to pass the hidden_channels and batch_size to the model
generator = partial(
    generator_model,
    hidden_channels=cfg.hidden_dims,
    batch_size=cfg.batch_size
)

discriminator = partial(
    discriminator_model,
    hidden_channels=cfg.hidden_dims
)
# Init parameters by passing a dummy input
generator_params = generator().init(rngs=gen_key, z_rng=gen_key)
discriminator_params = discriminator().init(
    disc_key, jnp.ones((cfg.batch_size, 2), dtype=jnp.float32)
)

TrainState dataclasses hold model functions, parameters and optimizers in one place:

gen_state = train_state.TrainState.create(
    apply_fn=generator().apply,
    params=generator_params,
    tx=optax.adam(learning_rate=cfg.gen_lr),
)

disc_state = train_state.TrainState.create(
    apply_fn=discriminator().apply,
    params=discriminator_params,
    tx=optax.adam(learning_rate=cfg.disc_lr),
)

Training phases follow the earlier description. Example train step:

def train_step(gen_state, disc_state, batch, rng, cfg):
    # Generate random numbers
    rng, gen_key, disc_key = random.split(rng, 3)
    # First phase: Discriminator steps
    for _ in range(cfg.disc_steps):
        rng, gen_key = random.split(rng)
        disc_state, disc_loss = discriminator_step(
            gen_state, disc_state, batch, disc_key
        )
    # Second phase: Generator step
    gen_state, gen_loss = generator_step(gen_state, disc_state, gen_key)
    return gen_state, disc_state, gen_loss, disc_loss, rng

@jit
def discriminator_step(gen_state, disc_state, batch, latent_key):
    fake_data = gen_state.apply_fn(gen_state.params, latent_key)
    def loss_fn(params):
        fake_logits = disc_state.apply_fn(params, fake_data)
        real_logits = disc_state.apply_fn(params, batch)

        fake_loss = optax.sigmoid_binary_cross_entropy(
            fake_logits, jnp.zeros_like(fake_logits)
        )
        real_loss = optax.sigmoid_binary_cross_entropy(
            real_logits, jnp.ones_like(real_logits)
        )
        loss = jnp.mean(fake_loss + real_loss)
        return loss
    loss, grads = value_and_grad(loss_fn)(disc_state.params)
    disc_state = disc_state.apply_gradients(grads=grads)
    return disc_state, loss

@jit
def generator_step(gen_state, disc_state, latent_key):
    def loss_fn(params):
        fake_data = gen_state.apply_fn(params, latent_key)
        fake_logits = disc_state.apply_fn(disc_state.params, fake_data)
        # Non-saturating loss
        loss = -jnp.mean(jnp.log(nn.sigmoid(fake_logits)))
        return loss
    loss, grads = value_and_grad(loss_fn)(gen_state.params)
    gen_state = gen_state.apply_gradients(grads=grads)
    return gen_state, loss

Conclusion

We saw how to implement a GAN in Flax, by first going into some theoretical review and then diving into some of the peculiarities of this framework. I hope you found this exploration as useful and interesting as it was for me to write it. Your feedback, comments, and critiques are welcome.

References

• Kevin P. Murphy (2023). Probabilistic Machine Learning: Advanced Topics. MIT Press.
